Antenna and read range: why two cards with the same chip behave differently

Two cards arrive with the same chip, the same memory and the same encoding profile. One opens the door from thirty millimetres away. The other has to be pressed against the reader, and sometimes not even that works.

Nothing is wrong with the chip in either card. What differs is the antenna, where it sits inside the card body, and what the card is asked to work next to. None of those three things appear on the line of a quotation that names the chip, which is why they are the most common cause of a complaint that looks technical and is actually a specification gap.

This guide covers what the antenna does, what changes it, what degrades it, and how to specify a card so that read performance survives from the sample to the fourth reorder.

01. The chip is not the whole credential

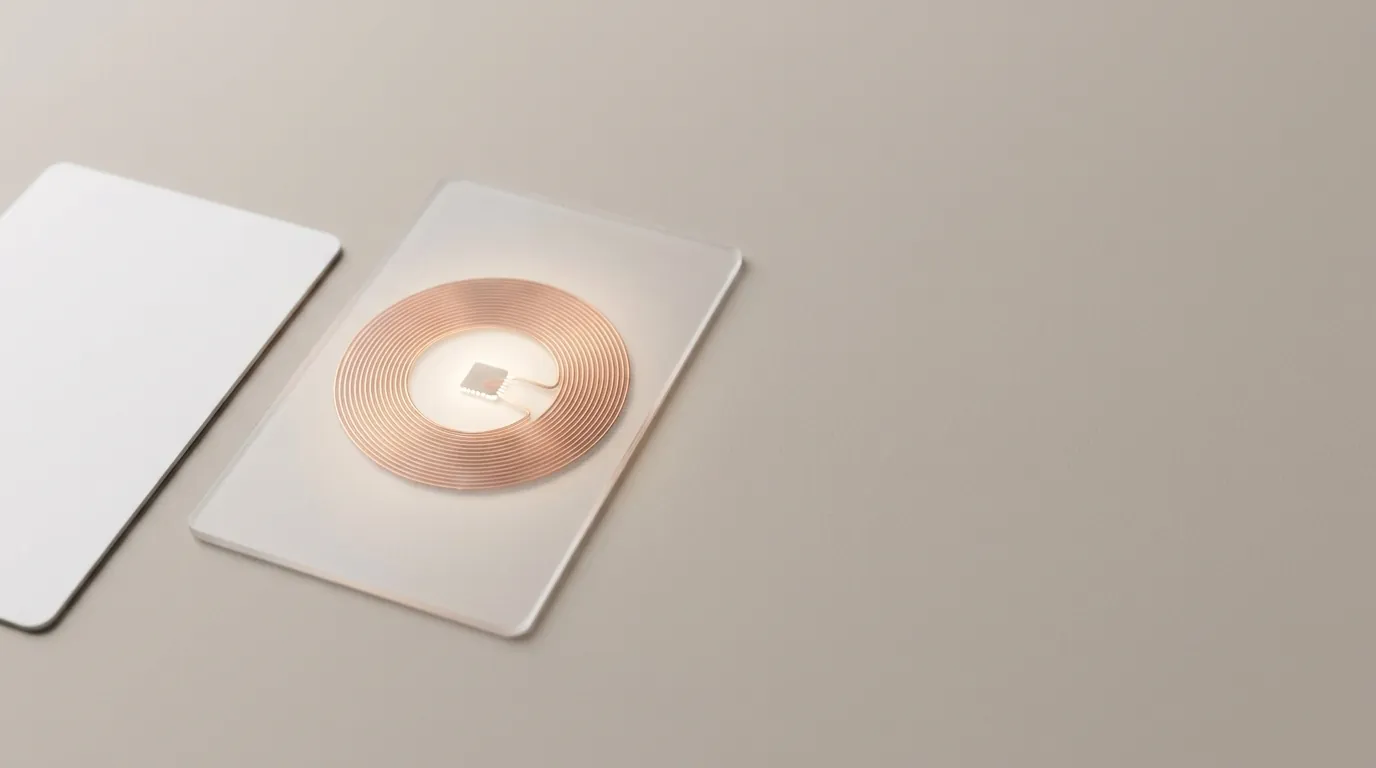

A contactless credential is two components working together. The chip holds the data and does the cryptography. The antenna, a coil of wire or etched conductor laid around the inside of the card, does two jobs at once: it harvests the energy that powers the chip, and it carries the conversation between chip and reader.

That first job is the one people forget. A passive credential has no battery. Everything it does is paid for by energy it pulls out of the reader's field in the moment it is presented. If the antenna cannot harvest enough energy, the chip does not brown out politely and report a problem. It simply never wakes up, and the reader sees nothing at all.

So a card that reads poorly is usually not a card with a bad chip. It is a card that is not collecting enough energy, or one whose antenna is tuned away from the frequency the reader is transmitting at.

The chip decides what a credential can do. The antenna decides whether it gets the chance.

Two cards with an identical part number can perform very differently, and nothing in the chip specification will explain why. The difference lives in the coil and in where it sits.

02. What actually sets the range

Three properties of the antenna govern performance, and they interact.

Area

The larger the loop the antenna encloses, the more of the reader's field it intercepts and the more energy it harvests. This is why a full size card generally out-performs a small key fob using the same chip, and why a very small credential needs more care in every other respect to compensate.

Number of turns and tuning

The coil and the chip form a resonant circuit, and that circuit has a frequency at which it is most efficient. The manufacturer tunes it, in practice by choosing the number of turns and the geometry, so that resonance sits where the reader transmits. A card that is tuned slightly off will still work, at reduced range, and the reduction can be enough to matter at a door where a guest is holding the card at an angle in one hand.

Position in the card body

The antenna sits on an inlay laminated between the printed layers. Where that inlay sits, and how consistently it sits there across a run, determines whether the coil lines up with the part of the reader that is transmitting most strongly. A displaced inlay produces a card that reads in one orientation and not another.

All three are manufacturing decisions taken before anything is printed. None of them can be corrected afterwards.

03. Format changes the antenna, whether you meant it to or not

The moment a credential stops being a standard rectangle, its antenna changes, and its performance changes with it.

A key fob in moulded plastic has far less internal area than a card, so its antenna is smaller and its range is typically shorter. That is normal and usually acceptable, because a fob is presented deliberately rather than waved past.

A special shape card, cut to a silhouette, loses antenna area wherever the shape cuts into the loop. A shape that looks striking on a design board can remove a third of the coil, and the drop in range is not proportional to the area lost, it is worse than that.

A wristband puts the antenna into a band that curves around a wrist, which changes the geometry of the loop and puts human tissue directly behind it. Both reduce efficiency, which is why a wristband and a card carrying the same chip are not interchangeable in performance terms.

A wood card or any card with a non-standard body changes the dielectric around the antenna, which shifts the tuning. A competent manufacturer compensates for this in the inlay. A supplier who drops a standard inlay into an unusual body does not, and the result is a beautiful card that reads badly.

If you change the shape, the material or the size, you have changed the antenna.

The chip specification stays the same and the performance does not. Any of those three changes is a reason to test physically rather than to assume the datasheet still applies.

04. What sits around the card

Half of the read range complaints that reach a supplier are not about the card at all. They are about what the card is next to.

Metal

Metal behind an antenna is the single most destructive thing in this category. It absorbs the field and detunes the coil, and the effect is severe rather than marginal. A card held flat against a metal surface, a fob on a keyring pressed against a bunch of keys, a wristband over a metal watch strap: all of these can take a credential from working to dead.

This matters in hospitality more than people expect, because metal card holders, metal energy saver slots and metal desk fittings are common, and because the person diagnosing the fault is looking at the card rather than at the surface it is sitting on.

Other credentials

Two contactless cards in the same wallet interfere with each other. Both try to harvest from the same field, both respond, and the reader sees a collision it may or may not resolve. The symptom is intermittent failure that follows the wallet rather than the card, and it is resolved by separating them.

Moisture and the human body

Water absorbs energy at these frequencies, which is why a wet card reads less well and why a wristband worn tightly against skin performs differently from the same band held in the air. This is also why testing a wristband on a desk tells you very little about how it will behave on a wrist.

Card holders and sleeves

Most plastic sleeves are harmless. Shielding sleeves, sold to block contactless reading, do exactly what they claim. It is worth knowing that a guest who has bought one for their bank cards may have put the key card in it too.

05. The reader is the other half

Range is a property of the pair, not of the card. A credential that reads at a comfortable distance on one reader may need to touch another, and neither device is faulty.

Readers differ in transmitted power, in antenna size and in how they are installed. A reader mounted onto a metal door frame behaves differently from the same unit on a plasterboard wall. A reader at the end of a long cable run may be receiving less power than the one next to the front desk.

The practical consequence for a buyer is that acceptance testing has to happen on the readers the cards will actually be used with. A card that performs well on a desktop encoder at the supplier has told you almost nothing about the door at the end of the corridor.

06. What a range figure on a datasheet means

Published read range figures are measured under laboratory conditions with a reference reader, a card in free air, and optimal alignment. They are useful for comparing one product against another and they are not a prediction of what will happen in a building.

Real world range is routinely a fraction of the published figure once the reader, the mounting, the angle of presentation and whatever is behind the card are all accounted for. That is not a defect and it is not a supplier exaggerating. It is the difference between a measurement and an installation.

The useful question is not what range a card achieves in a laboratory. It is whether it achieves a comfortable margin on your readers, in your building, presented the way your guests and staff actually present it.

07. Specifying so that batch four behaves like batch one

Read performance is one of the properties that drifts quietly between orders, because nothing about it is visible. Four things keep it stable.

Name the chip family, generation and memory in writing, not a generic description. A substitution that looks equivalent on paper can carry a different antenna requirement.

Require a single chip and inlay revision across the whole delivery. A batch assembled from two inlay types will contain cards that perform differently, and the cards that fail will be scattered randomly through the boxes rather than grouped, which makes the fault look like something else entirely.

Ask for a stated inlay placement tolerance. This is the manufacturing commitment that keeps the coil in the same place on every card. A supplier running a controlled process can state one.

Keep a reference card from the accepted batch and test it alongside any new delivery on the same reader. A physical comparison takes a minute and settles questions that correspondence cannot.

For a reseller supplying several sites, the reference card matters more than anything else on that list, because it is the only artefact that distinguishes a card that has changed from a reader that has aged.

08. Diagnosing a range problem

When a credential reads poorly, a short sequence separates the causes in the order that costs least to check.

Move it away from everything. Take the card out of the wallet, off the keyring, away from the metal surface. If it now reads, the environment was the fault and no card will fix it.

Try a card from the previous batch on the same reader. If the old card works and the new one does not, the change is in the delivery.

Try the failing card on a different reader. If it works elsewhere, the reader or its mounting is the variable, not the card.

Try a different orientation. A card that reads in one orientation and not another points at inlay placement or at a reader whose field is weaker at one edge.

Four checks, no tools, and they will resolve the large majority of cases before anyone opens a support ticket.

Test the credential the way it will be used, not the way it is easiest to test.

On the real reader, at the real angle, with whatever the user will be carrying it alongside. A card that passes on a bench and fails at a door has not been tested, it has been admired.

09. Frequently asked questions

Can you increase the read range of a card we already have?

No. The antenna is laminated inside the card body and is fixed at manufacture. Range can only be changed by changing the card or the reader.

Why does our key fob read less well than our card?

Because it encloses less area, so it harvests less energy. This is expected behaviour rather than a fault, and it is one reason a fob is usually presented deliberately rather than waved.

Two cards in a wallet stopped working. Is one of them faulty?

Usually neither. Two contactless credentials in the same field interfere with each other. Separate them and test again before concluding anything about either card.

Does printing affect read range?

Ordinary printing does not. Metallic inks and foils can, because they put conductive material over the antenna. If a design calls for a large metallic area, say so before production so the inlay can be positioned accordingly.
